Tank Outlet Connection

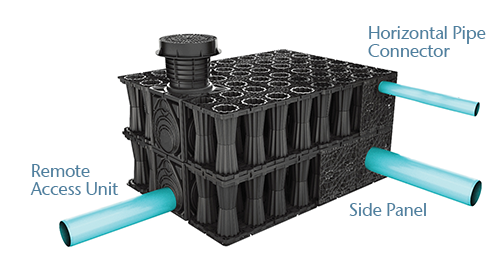

This software assumes 1 outlet on the system. There are 3 methods for connecting an outlet pipe. If a Remote Access Unit is chosen for pipe exit, position it's location on the next screen.

Select outlet method

Remote Access Unit
Remote Access Unit allows both pipe connections and extension shafts for maintenance access.

You will be required to configure their location on the next screens along with the quantity required for access.

This unit can accomodate a maximum pipe size of 18". If larger pipe connections are required please contact ACO.

Side Panel
Pipe locations are molded onto the sidewall panels for easy cut-outs.

This unit can accomodate a maximum pipe size of 18". If larger pipe connections are required please contact ACO.

Horizontal Pipe Connector
Pipe connectors allow simple connection of pipes to the tank.
